Ace Head (70DV2Q8)
by Visual Comfort & Co. Modern Collection 700MOACE930405S

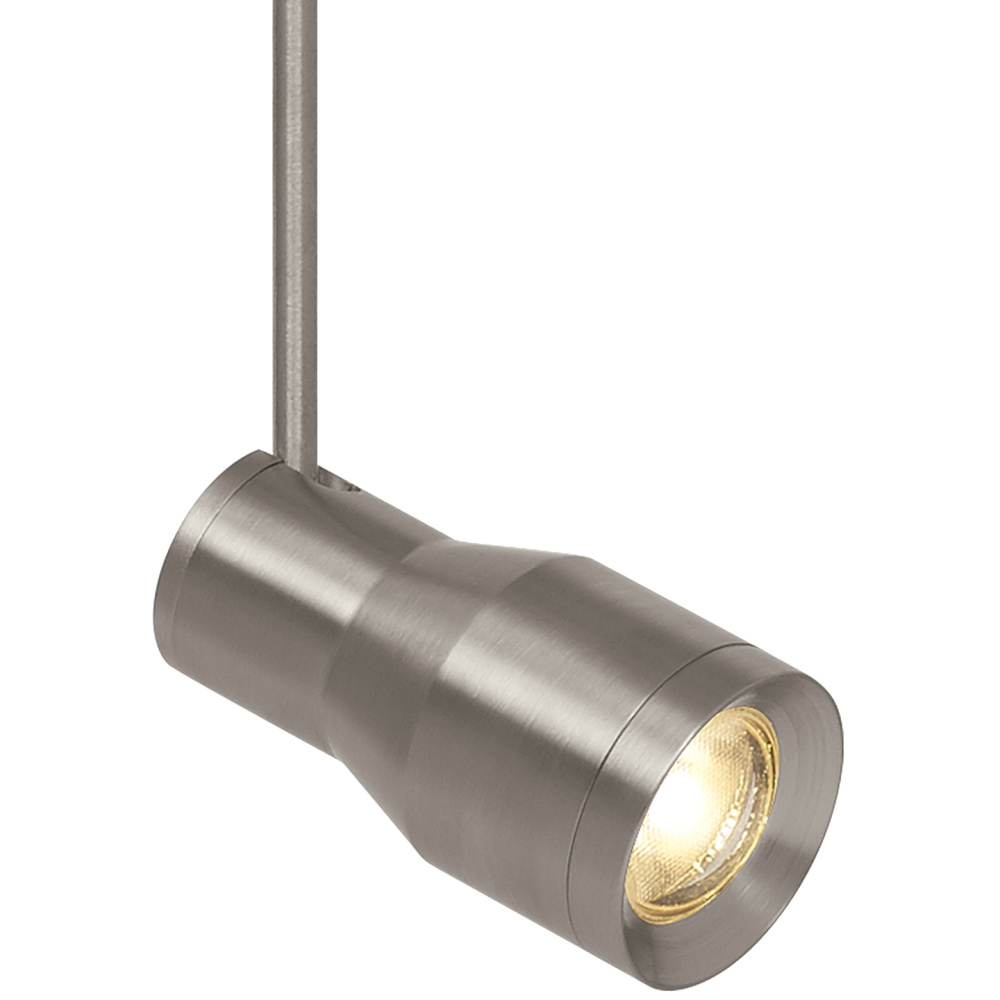

The Ace Task Head light by Sean Lavin for Visual Comfort Modern is simply efficient featuring a classic adjustable spot head design with variable stem lengths and beam spread choices. Available in modern finishes. This practical and efficient task head scales at 3.5" in length and 1.8" in width making it ideal for residential and commercial lighting spaces. Combine the Ace Task Head with our complementary MonoRail system for even greater design customization in your unique space. The Ace comes with your choice of two integrated LED lamp options, both lamps are fully dimmable to create the desired ambiance in your any space.
Product Specification
Item #
70DV2Q8
Dimensions
Height: 1.90"
Length: 3.60"
Additional product details
Internal #
70DV2Q8
Category
Track Ltg.
Subcategory
Track Heads
Finish
Nickel
Style
Contemporary
, Industrial
Option
Dry Rated
Kelvin
2501-3000
Category
Low-Voltage Heads
Finish
Satin Nickel
Style
Contemporary
Option
LED
, Title 24
Family
Ace
Voltage
12 V
Shade
Metal Task Head
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Shape
Integrated LED
Designer
Sean Lavin
Diameter
1.9
Introduction Date
01/01/2018
Kelvin
3000
Keyword(s)
Commercial Space, Family Room, Office
Lumens / Light Output
518.5
Material
Metal
Max Height
5
Ship Carton Height
3
Ship Carton Length
12
Ship Carton Width
3
Ship Weight
2.5
Vendor Ship Method
UPS, FedEx
Warranty
5 Years
Weight
1.5
ADA Compliant
No
Adjustable Head
Yes
Battery Included
No
Bulb CRI
90
Bulb Included
Yes
Bulb Wattage
9.4 W
Cable Field Cuttable
No
Country of Origin
CN
Dark Sky
No
Dimmer Type
ELV, TRIAC
Efficacy
55.2
Energy Star
No
Hardware Material
Metal
IP65 Rated
No
Is Solar Powered
No
L70
>50000
LED
Yes
Location Rating
Dry Rated
Max Wattage
9.4 W
MIN Height
5
Photocell Included
No
Prop 65
No
Replaceable Lamp
No
Reversable
No
Safety Rating
ETL Approved
Shade Diameter
1.9
Shade Height
1.9
Shade Length
3.6
Shade Material
Metal
Shade Width
1.9
Sloped Ceiling Compatible
No
Stocking Type
Assemble to Order
Style-2
Mid-Century, Industrial
SYSTEM
MonoRail
Title 20
No
Title 24
Yes
Total Wattage
9.4 W
Warm Color Dimming
No
Manufactured By
Visual Comfort & Co. Modern Collection
Other Details:
- 5 year warranty with no lamping option. 5 year warranty with LED lamping option, visit techlighting.com for more warranty details
- Ace head can pivot 90° (horizontal to straight down)
- Ace head only compatible with AC transformers
- Adjustable spot head design and variable stem length options available
- As a general rule when using the Ace head, we do not recommend using greater than 33% of the maximum wattage specified for the low voltage transformer due to inrush current requirements
- Available in modern finishes
- Compatible with MOCGG, MOCSF, MOCLL, MOCEC, MOCLS1 AND MOC LS12 lenses.
- Dimmable with most LED compatible or ELV and Triac dimmers
- Efficient, classic adjustable spot head design
- For assistance in calculations, please contact Technical Support
- Fully dimmable integrated LED lamp
- Idea for residential and commercial lighting applications
- Includes 12 volt 9.4 watt, 518.5 delivered lumens, 2700K or 3000K, LED module
- Integrated lens holder accommodates up to (2) lenses and louvers (sold separately)
